Cast Iron End Centrifugal Pump
We are offering Cast-Iron Centrifugal Pumps. These are horizontal pumps: end suction, horizontal, centrifugal coupled pumps with semi open impeller. Our AP45-CIE91 pumps are centrifugal semi open impeller type pumps smaller volume using less floor space

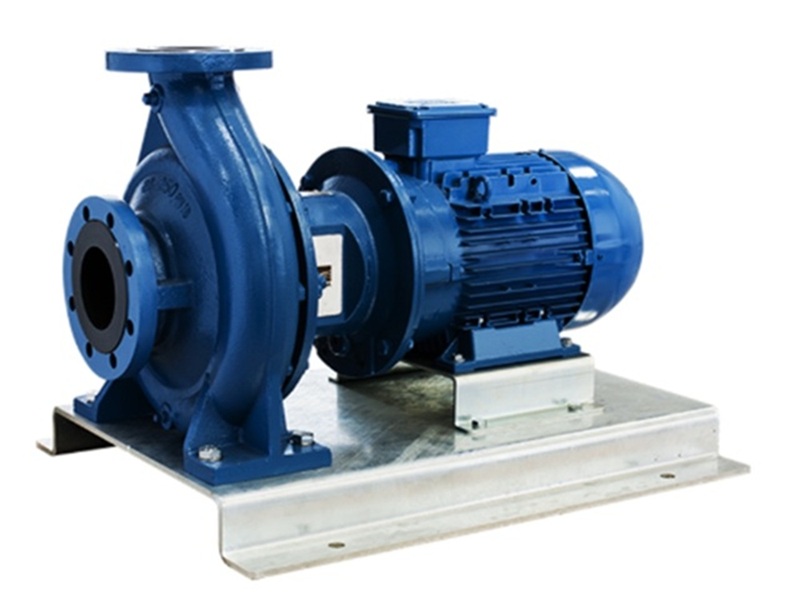

Cast Iron End Centrifugal Pump AP45-CIE91
Our centrifugal pumps AP45-CIE91 Series is standardised to EN733 in cast iron. The pump construction is a monoblock type fitting with IEC standard motor with the following product benefits; XEN733 with 16 bar; Energy saving MEI>0.6; Easy installation; High corrosion resistance

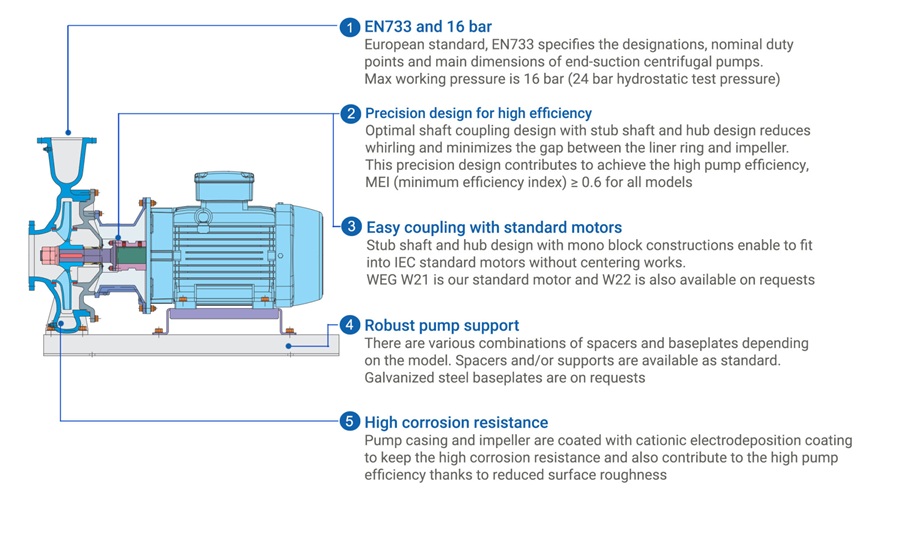

Key Features
Specifications
Operating range
| Flow rate | Up to 800 m³/h |
| Total head | up to 150 m |
| Max. working pressure | 16 bar |
| Liquid temperature | -10 to 120℃ |
| Outlet size | 32 to 150 mm |
Pump material
| Casing | Cast iron (FC250) |
| Impeller | Bronze (CAC 406) |
| Casing wearing | Bronze (CAC 406) |
| Stub shaft | Stainless steel 431 (SUS431 eq.) |
| Mechanical seal | Carbon/SiC/EPDM |
Motor
| Brand | WEG W21 as standard WEG W22 as option |
| Frequency | 50 Hz |
| Power rating | 1.1 to 110 kW |
| Efficiency | IE3 |
| Voltage | 230/400 V (up to 3.0 kW) 400/690 V (4.0 kW and above) |
| Poles | 2, 4 |
| Protection degree | IP55 |
| Insulation class | Class F (class B for temperature rise) |

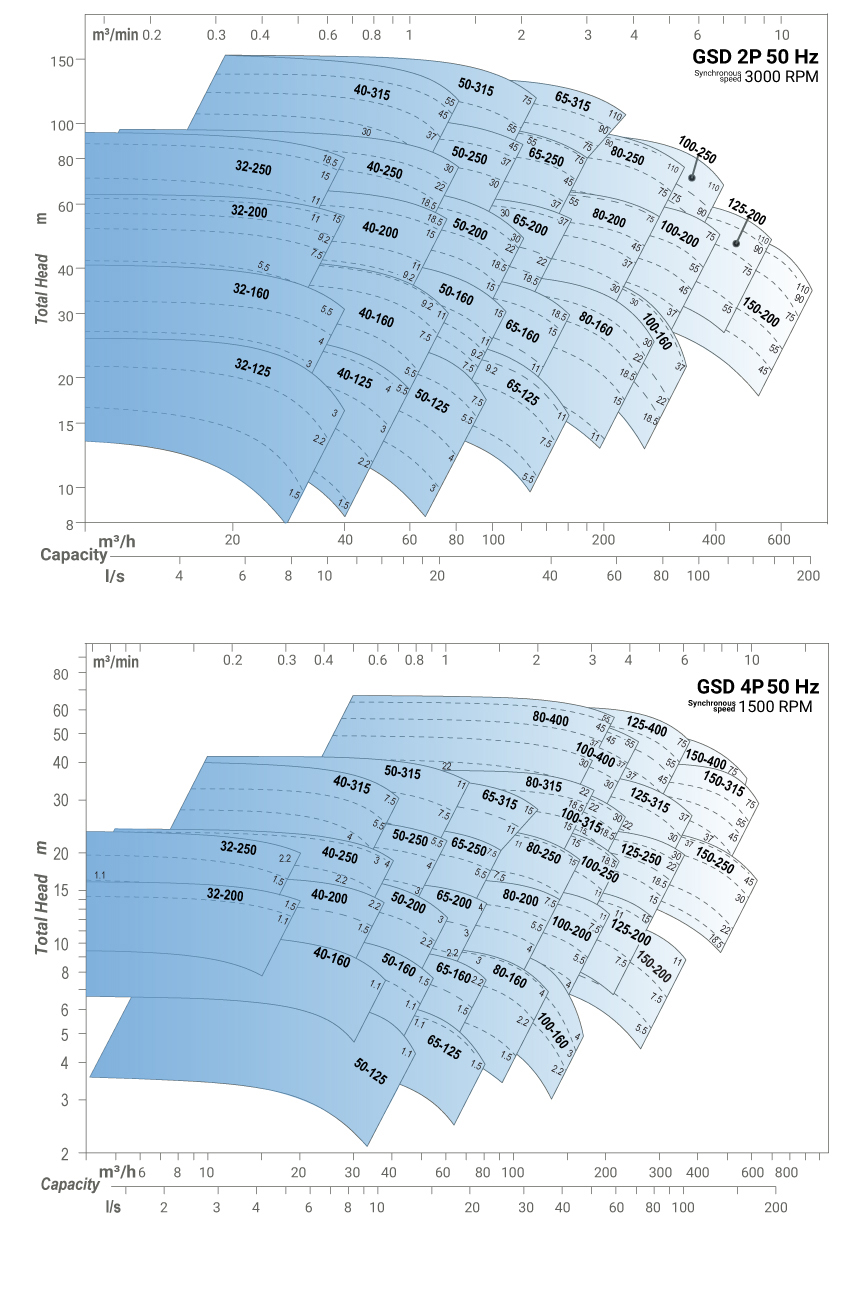

Selection Chart (50Hz)
Applications
IndustryCommercial Building Service
Municipal Water and WastWater
Irrigation
