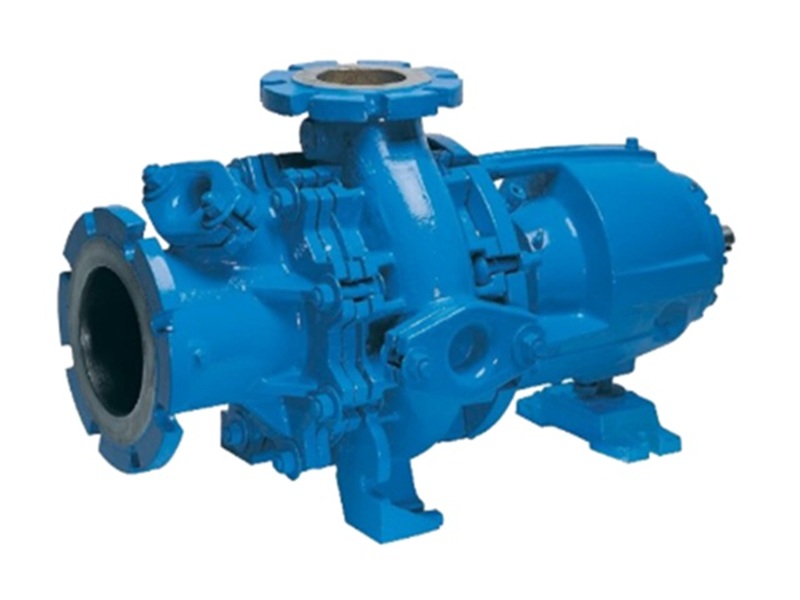

Solid Handling Pump AP87-SHP16
Apex Pump Engineering's AP87-SHP16 Solid Handling Pumps perform the dual function of cutting and pumping, making them ideally suited for applications requiring reduction of solids size and/or protection of downstream equipment.
PRINCIPLE OF OPERATIONSolid Handling Pump AP87-SHP16 design is an open-type impeller with sharpened leading and vane edges. The primary chopping and conditioning action of solids within the fluid is provided by the impeller's leading edges rotating in tight clearance across the cutter bar at the pump suction. A secondary cutting and expulsion action takes place behind the impeller with the impeller's sharpened vane edges, which rotate across spiral grooves on the backplate. This secondary cutting action both cuts and expels solids from behind the impeller.
PUMP CONFIGURATIONS
Solid Handling Pump AP87-SHP16
Chopper Pumps design is an open-type impeller with sharpened leading and vane edges to perform the dual function of cutting and pumping, making them ideally suited for applications requiring reduction of solids size and/or protection of downstream equipment with the following benefits;
Abrasive resistant materials, and Compact design

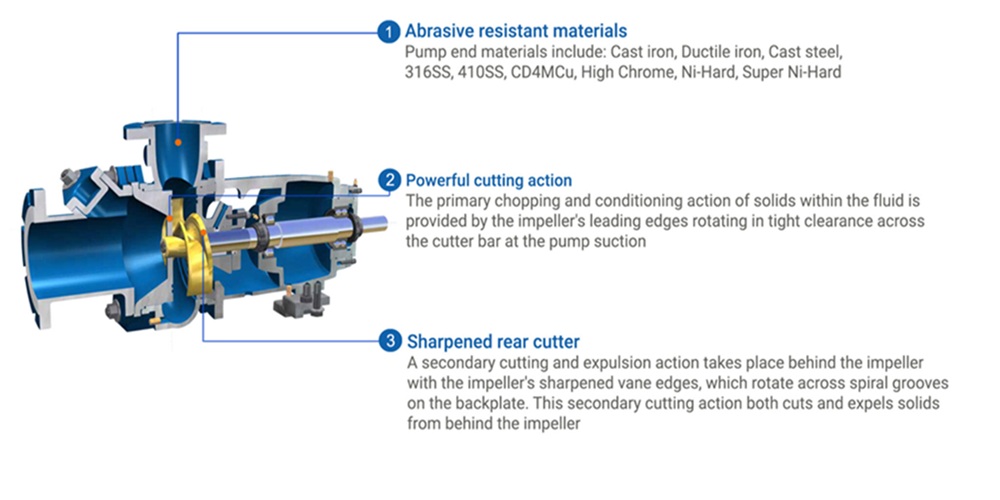

Main Product Features
Specifications
Operating range
| Flow rate | Up to 1,400 m3/h |
| Total head | Up to 38 m |
| Outlet size | 80 to 300 mm |
Pump material
| Pump end | Cast iron, Ductile iron, Cast steel, 316SS, 410SS, CD4MCu, High Chrome, Ni-Hard, Super Ni-Hard |
Note
| Model CHOPX is the engineered product and various material options are available. Please contact our sales team for pump sizing. |

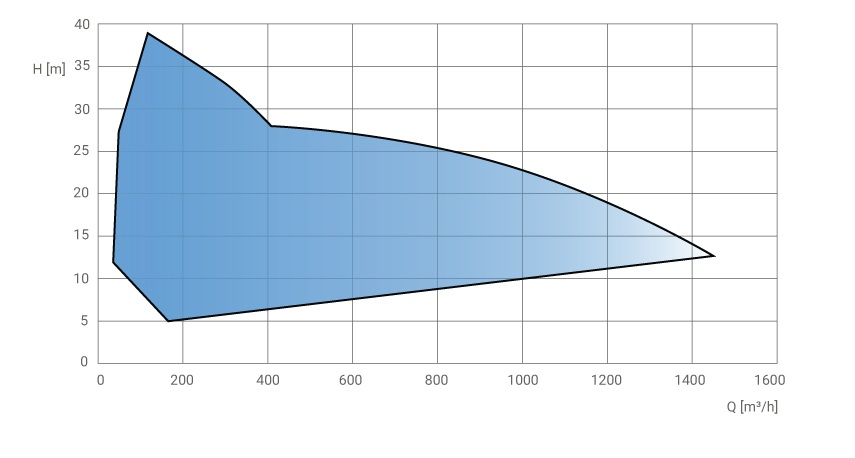

Selection Chart (50Hz)
Applications
IndustryCommercial Building Service
Pulp & Paper
Chemical
Municipal Water and Westwater
