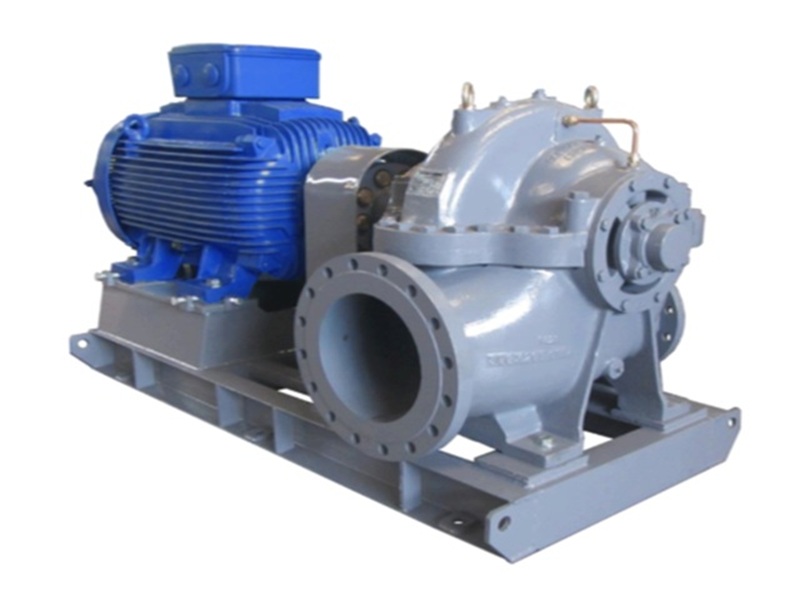

Bronze Centrifugal Casing pump AP83-BCC51
A Bronze Centrifugal Casing pump is a heavy-duty centrifugal pump featuring a casing divided into two halves. This design allows the top half to be lifted off for easy access to internal components (impellers, bearings) without disconnecting the attached piping or motor.
Apex Pump Engineering's AP83-BCC51 series Bronze Centrifugal pumps are pratically maintenance free, and provide years of reliable, trouble-free service. These versatile pumps are available in a wide variety of materials and drivers, including electric motors, combustion engines and steam turbines to meet your application requirements.
General liquid pumping, power plants, steel mills, chemical plants, paper mills, refineries, cooling and heating systems and water booster service are few of the applications in which our split case pumps thrive.
Bronze Centrifugal Casing pump AP83-BCC51
Our Bronze Centrifugal Casing pump AP83-BCC51 series is a family of C series for split casing pumps. Horizontal constructions and vertical constructions are available, equipped with a single-entry and a double-entry impeller with the following benefits:-

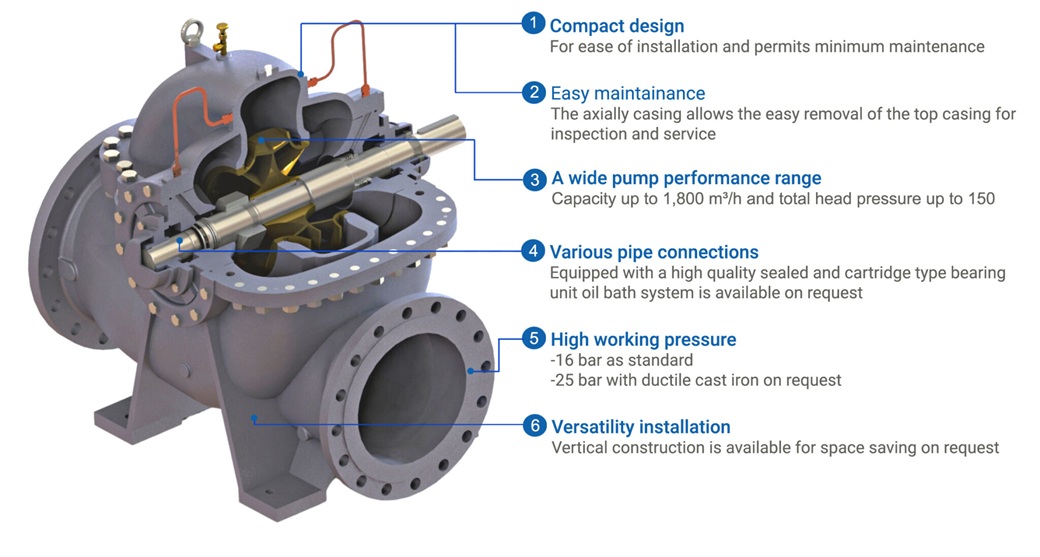

Main Product Features
Specifications
Operating range
| Model | CNA：a double-entry impeller CSA：a single-entry impeller |
| Flow rate | Up to 34 m³/min |
| Total head | Up to 160 m |
| Max. working pressure | 16 bar as standard 25 bar as option |
| Liquid temperature | 80℃ as standard 120℃ as option |
| Flange | JIS as standard DIN, ANSI as options |
| Outlet size | 80 to 350 mm |
Pump material
| Casing | Cast iron (FC250) as standard Ductile cast iron (FCD450) as options |
| Impeller | Bronze (CAC 406) as standard Casting stainless steel 304, 316 as options |
| Mechanical Seal | Ceramic/Carbon/EPDM as standardSiC/SiC/EPDM, SiC/Carbon/EPDM as options |
Accessories
| Standard | Air vent piping, Flushing water piping, and Lifting bolt |
| Option | Anchor bolt, Pressure gauge |

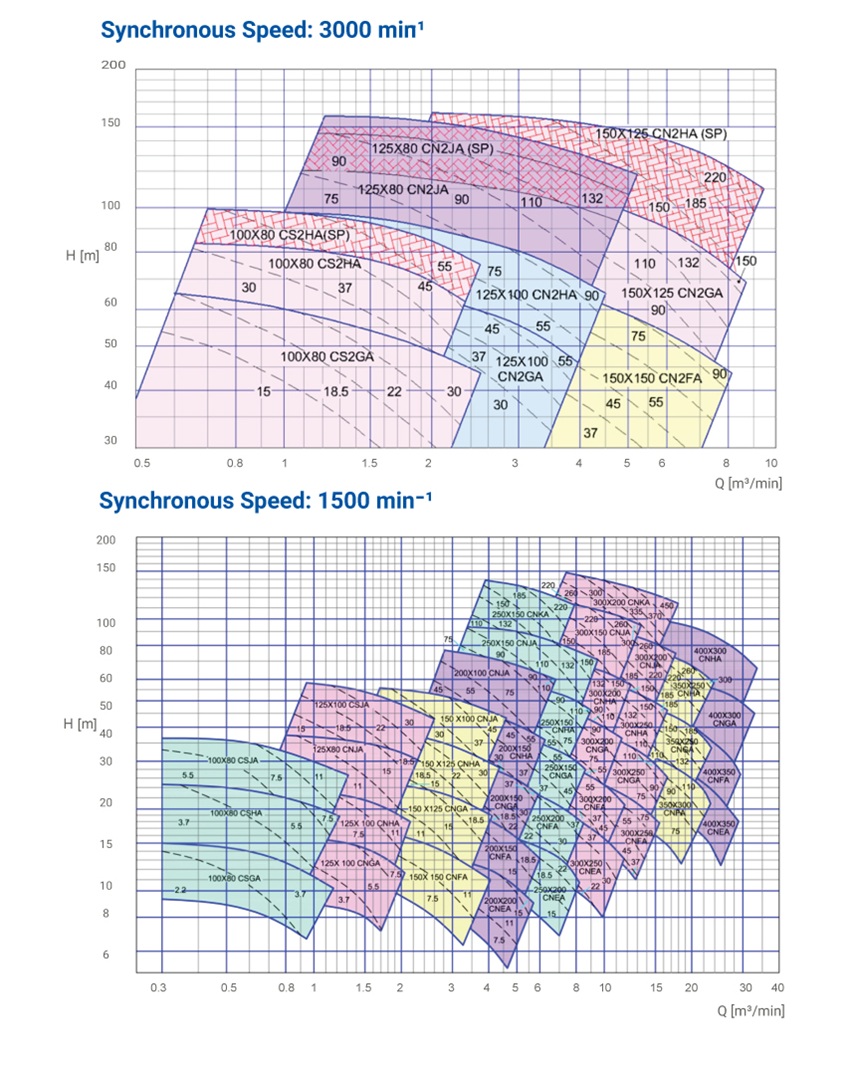

Selection Chart
Applications
IndustryCommercial Building Service
Municipal Water and Westwater
Iirrigation
