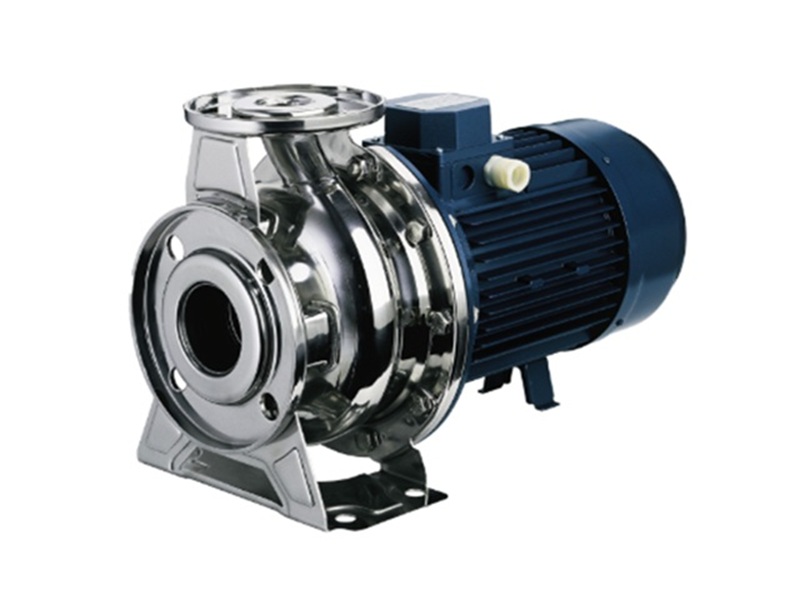

Magnetic Drive Suction Pumps AP18-MDS81
These pumps efficiently handle fluid transfer tasks in various industrial, commercial, and municipal environments. Constructed from stainless steel, they are ideal for applications requiring corrosion resistance and hygiene, such as water supply, chemical processing, food and beverage industries, and pharmaceutical manufacturing. Their durability and reliability make them valuable assets in fluid transfer operations where cleanliness and longevity are paramount.
Magnetic Drive Suction Pumps AP18-MDS81
Our Magnetic Drive Suction Pumps AP18-MDS81 is a family of 3 Series for centrifugal pumps standardised to EN733 in 304ss stainless steel. The pump construction is a Monoblock type with an extended shaft motor with the following benefits:-

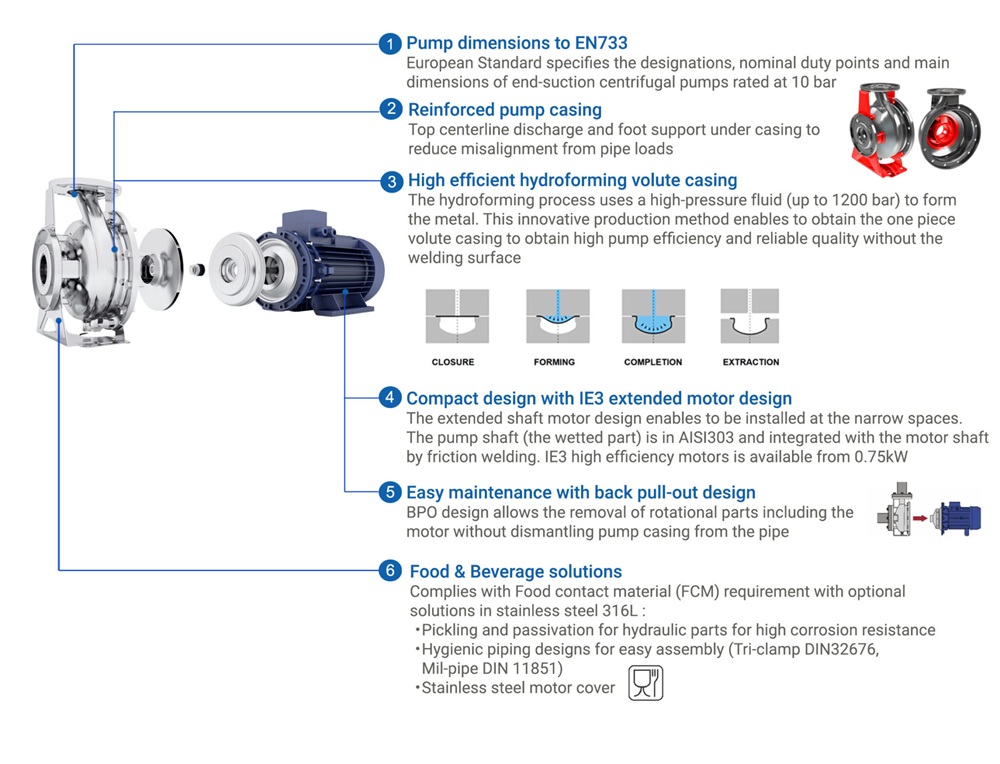

Main Product Features
Specifications
Operating range
| Flow rate | Up to 72 m³/h (2 pole) Up to 39 m³/h (4 pole) |
| Total head | Up to 70 m (2 pole) Up to 17.7 m (4 pole) |
| Max. working pressure | 10 bar |
| Liquid temperature | -10 to 90℃ |
| Outlet size | 32 to 50 mm |
Pump material
| Casing | Stainless Steel (stamped) 304 |
| Impeller | Stainless Steel (stamped) 304 |
| Shaft | Stainless steel 304 (wetted parts) |
| Mechanical Seal | Standard: Carbon/Ceramic/NBR Options: - High temperature seal (110 °C) wih Carbon/Ceramic/Viton seal & Viton O Rings |
Motor
| Frequency | 50Hz |
| Power Rating | 1.1 to 15 kW (2 pole) 0.37 to 2.2 kW (4 pole) |
| Efficiency | IE3 |
| Voltage | 230/400 V (up to 4.0 kW) 400/690 V (5.5 kW & above) |
| Poles | IP55 |
| Protection degree | IP55 |
| Insulation | Class F (class B for temperature rise) |

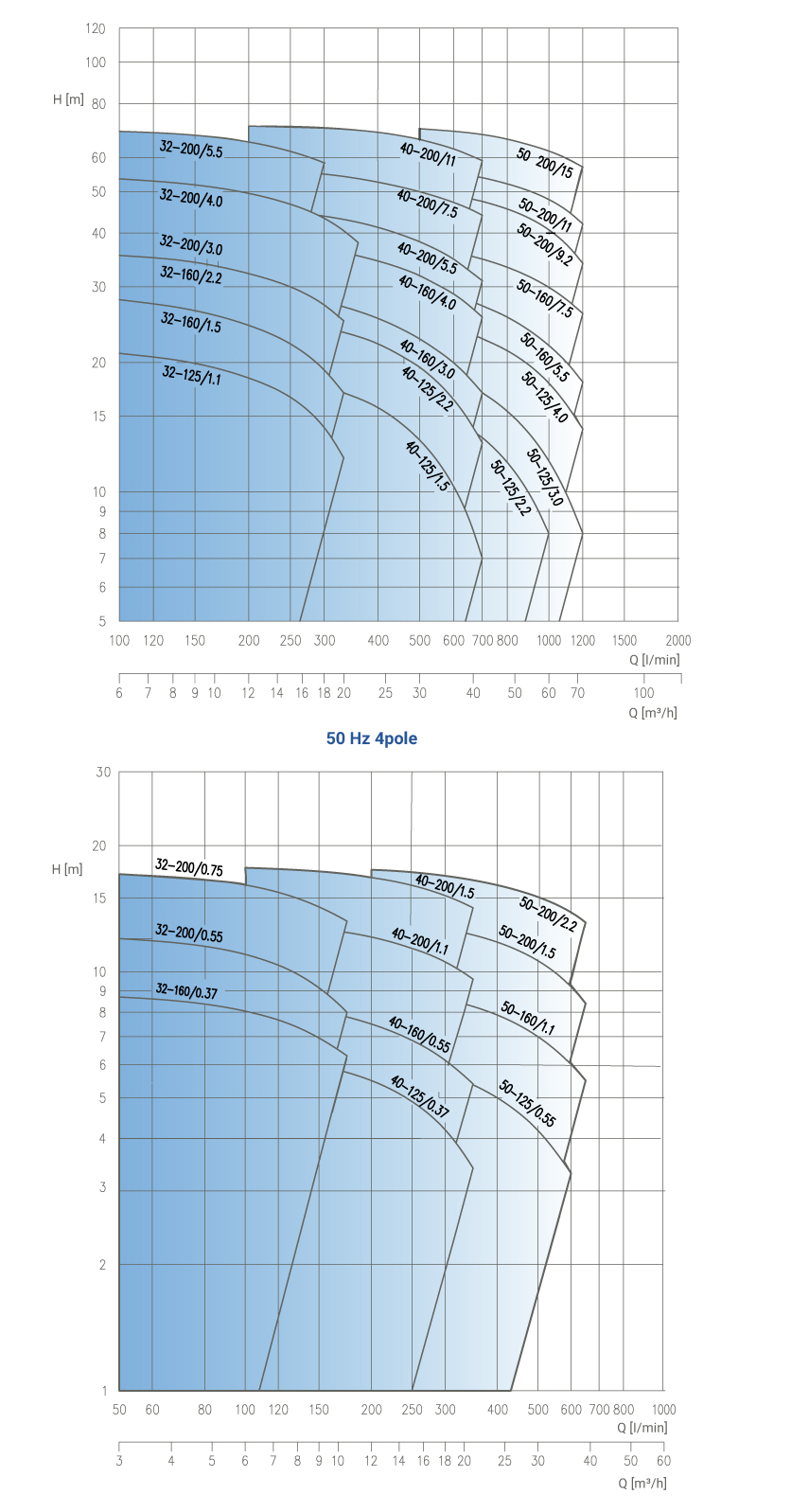

Selection Chart (2 Poles)
Applications
IndustryCommercial Building Service
Iirrigation
