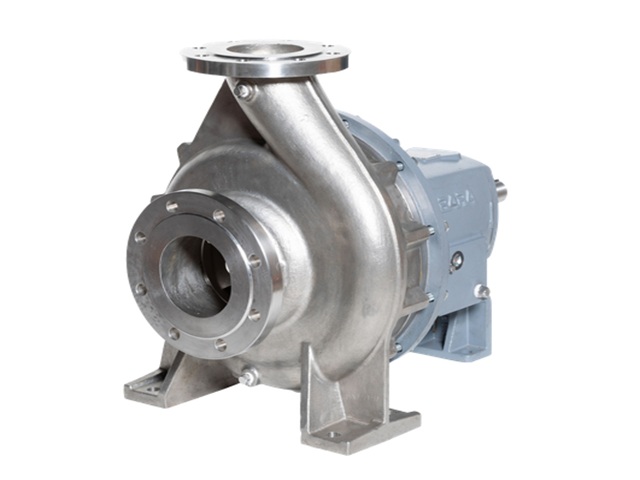

Stainless End Suction Pump AP88-HPH34
Our Stainless End Suction Pump AP88-HPH34 is a centrifugal pump with an axial suction and a 90-degree output. It is also known as a transfer pump. Many designs include a centre line discharge to adhere to local or global norms.End-suction centrifugal pumps come in two varieties, known as Monoblocs: long coupled (motor and coupling are housed separately) and close coupled (motor and pump are housed together). Larger end-suction pumps typically have a twin volute to lessen the impact on the impeller, motor, shaft, and bearings.End suction pumps are typically single-stage, cast iron, bronze, or stainless steel made.
Stainless End Suction Pump AP88-HPH34
Apex Pump Engineering's Stainless End Suction Pump AP88-HPH34 standardized to ISO2858 / ISO5199 in various stainless steel options with the following benefits:-

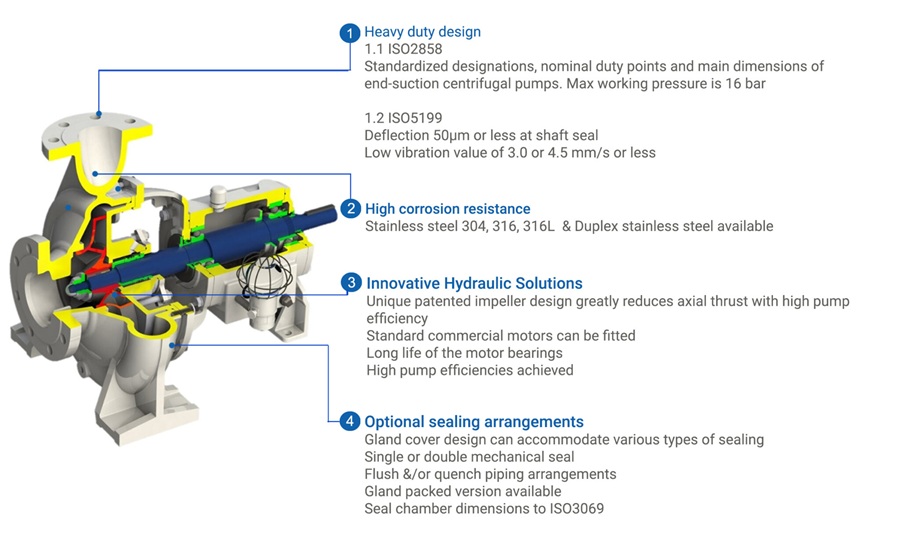

Main Product Features
Specifications
Operating range
| Flow rate | Up to 1250 m³/h |
| Total head | Up to 150 m |
| Max. working pressure | 16 bar |
| Liquid temperature | -30 to 150℃ |
| Outlet size | 32 to 200 mm |
Pump material
| Casing | Stainless steel 304, 316 |
| Impeller | Stainless steel 304, 316 |
| Shaft | Stainless steel 304, 316 |
| Mechanical seal | SiC/Carbon/FKM as standard |
| Options(Contact us) | Stainless steel 316L & Duplex / Super duplex Various seal options including double mech.seal Quenching / External flushing Spacer coupling Oil bath and more |
Selection Chart (50Hz)
Applications
IndustryMunicipal Water and Westwater
